- Supports 1 x 10/100Base-T(X) ports
- Supports 1 x RS485 Serial Connection up to 460800 Baud
- Embedded web interface for ease of use
- 2 Different Device Functions and 4 Different Working Modes:
Serial to Ethernet Transparent Gateway Function: Act as transparent gateway between TCP Master and Serial devices or TCP slave and Serial devices
Modbus TCP/RTU Protocol Gateway: Convert Modbus TCP Master devices data to Modbus RTU Protocol or Modbus RTU Master devices data to Modbus TCP Protocol
- Transparent Operating Mode lets device act as Serial to Ethernet Gateway
- Up to 10 remote TCP/IP device connection in Modbus TCP/RTU Protocol Gateway Function
- Easy to follow Serial and Ethernet data packages on web interface
- Black List and White List based IP Filter in TCP Server Mode
- DHCP Server Capability
- Firmware Upgrade over Web
- 2 firmware storage capability on same device (1 active only)
- 9-36V DC wide range power input (allows up to 40 V DC)
- Wide operating temperature range from -40 to 85 °C
- Rugged Metal IP-40 housing design
- DIN-Rail mounting
ETHERNET TECHNOLOGY
Ethernet Standards
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-T(X)
IEEE 802.3x Flow Control
Mac Table
1K MAC address entry
Processing
Store-and-Forward
Memory
448K bits packet buffer memory
NTP TIME SYNCHRONIZATION
NTP is used to syncronize device time. Device checks if NTP time server is available in every 10 seconds after repower. Device synhcronizes its time if NTP time is available and stops checking after successfull synchronization.
CONNECTORS AND PORTS - LITE MODELS
10/100T(X) RJ45 Port
Ethernet Connection on 1 port
Serial Port
2 pin wired Terminal Connection
A and B for RS485
Reset Button
Reset to Factory Default Settings Button
LED INDICATORS - LITE MODELS
10/100T(X) Indicator
Activity LED for Ethernet
System Indicators
Status LED,
Tx and Rx of data LEDs and Server LED
(LED ON: Server Operating Mode, LED OFF: Client Operating Mode)
POWER - DC - LITE MODELS
Input Range
9-36V DC wide range power input
(Allows up to 40 V DC)
Reverse Polarity Protection
Available
Insulation Voltage
1500VDC for 1 minute with leakage current <1mA
PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS - LITE MODELS
Enclosure
Metal, IP40
Dimensions
43 x 95 x 124 (w x d x h) mm
Weight
~400gr
Storage Temperature
-55 to 125 °C
Operating Temperature
-40 to 85 °C
Operating Humidity
5% to 95% Non-condensing

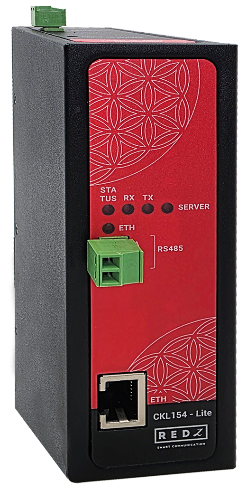

CKL154 - Lite: Serial to Ethernet Gateway, 1x 10/100 T(x) ETH ports and 1 x RS485, 9-36V (max. 40V) DC Power Input
